UNI-Metal Screw for Face-Fixing EQUITONE Panels to Metal Subframes
UNI-Metal Screw for Face-Fixing EQUITONE Panels to Metal Subframes
The EQUITONE UNI-Metal Screw is a purpose built fastening solution for face fixing 8mm EQUITONE high density fibre cement panels to metal subframes without the need for predilling the sub-structure. Its colour matched head ensures visual continuity, while the innovative biodegradable centering tip delivers precise, low strain installation. With high pull out and shear resistance, this screw supports secure, long lasting rainscreen cladding across vertical facades, soffits, and ceilings.
Key components of the UNI-Metal screw
Key components of the UNI-Metal screw
- Centering Sleeve: Leaves no residual material in the drill hole to interfere with the 3-dimensonal movement after installation.
- Drill Tip: Bites immediately and drills through the substructure with ease.
- Shoulder: Protects the panel from overtightening.
- Double-start Thread: Supports the straight alignment of the fastener to the panel.
- Reduced Thread: Helps prevent the screw from accidentally backing out of the substructure.
- Optimized Drive: Uses a T25W bit to help make installation more stable and therefore easier than standard Phillips.
UNI-Screw for metal frames
Detailed information
*The self-centering tip will break down biologically if exposed to suitable conditions like soil and sunlight. However, it is unlikely to decompose quickly if disposed of in a normal waste stream.
Downloads
Design and Installation Guide

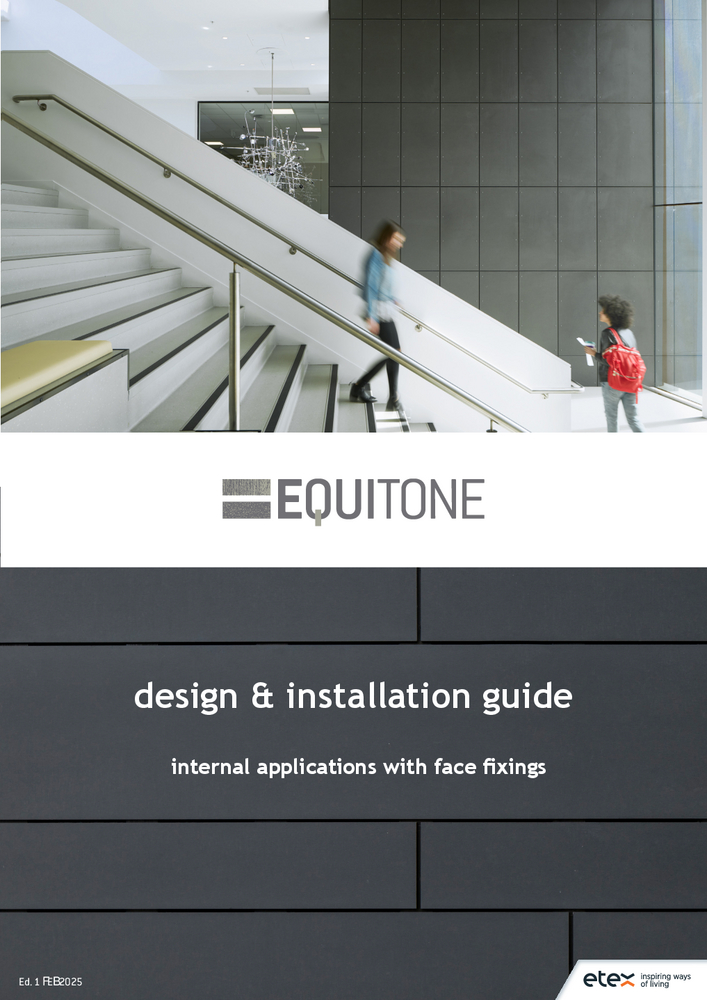

Design and Installation Guide for Internal Applications with Face Fixings
