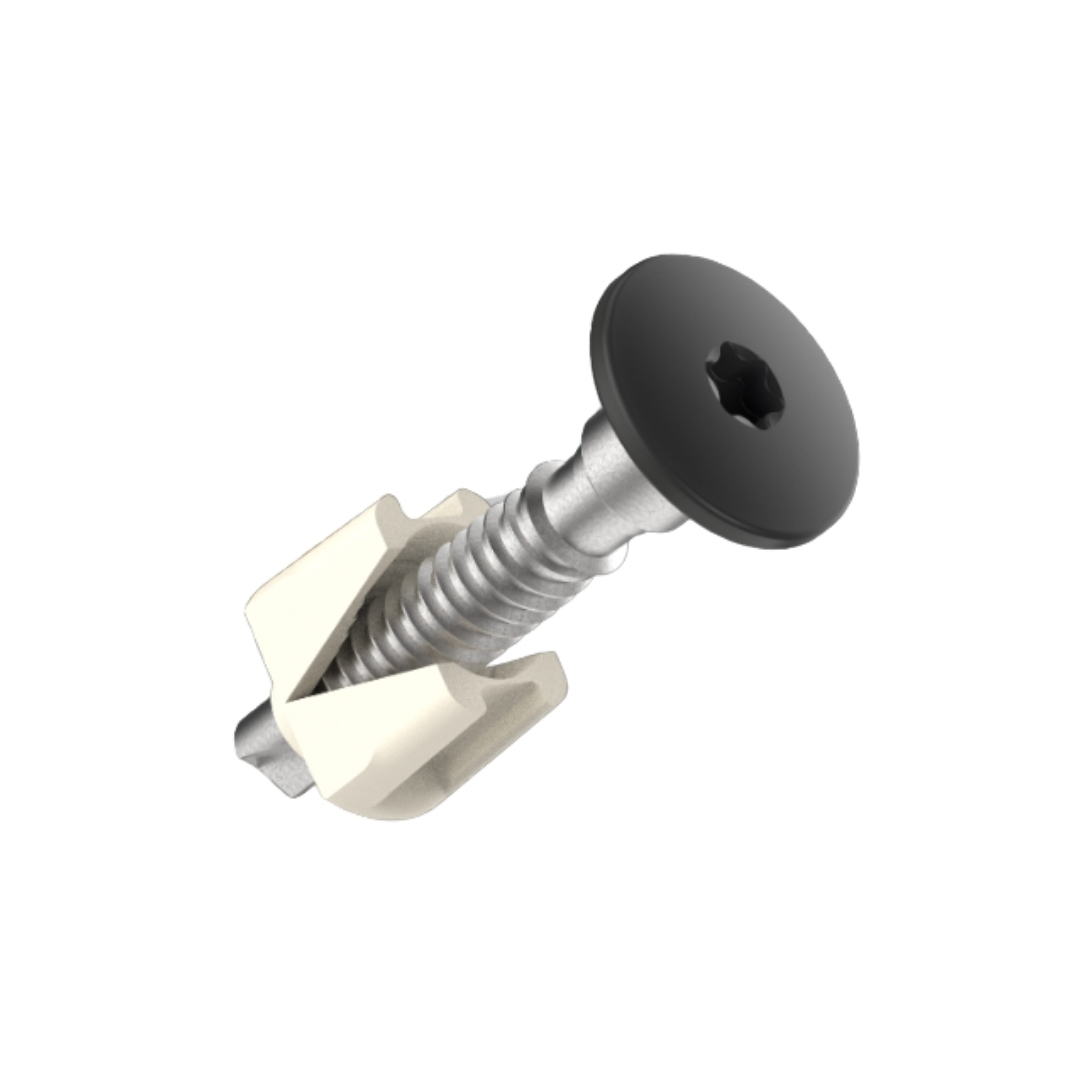

EQUITONE UNI-Metal Screw

UNI-Metal Screw for Face-Fixing EQUITONE Panels to Metal Subframes

The EQUITONE UNI-Metal Screw is a purpose-built fastening solution for face-fixing 8mm EQUITONE high-density fiber cement panels to metal subframes—without the need for predilling the sub-structure. Its color-matched head ensures visual continuity, while the innovative biodegradable* centering tip delivers precise, low-strain installation. With high pull-out and shear resistance, this screw supports secure, long-lasting rainscreen cladding across vertical facades, soffits, and ceilings.

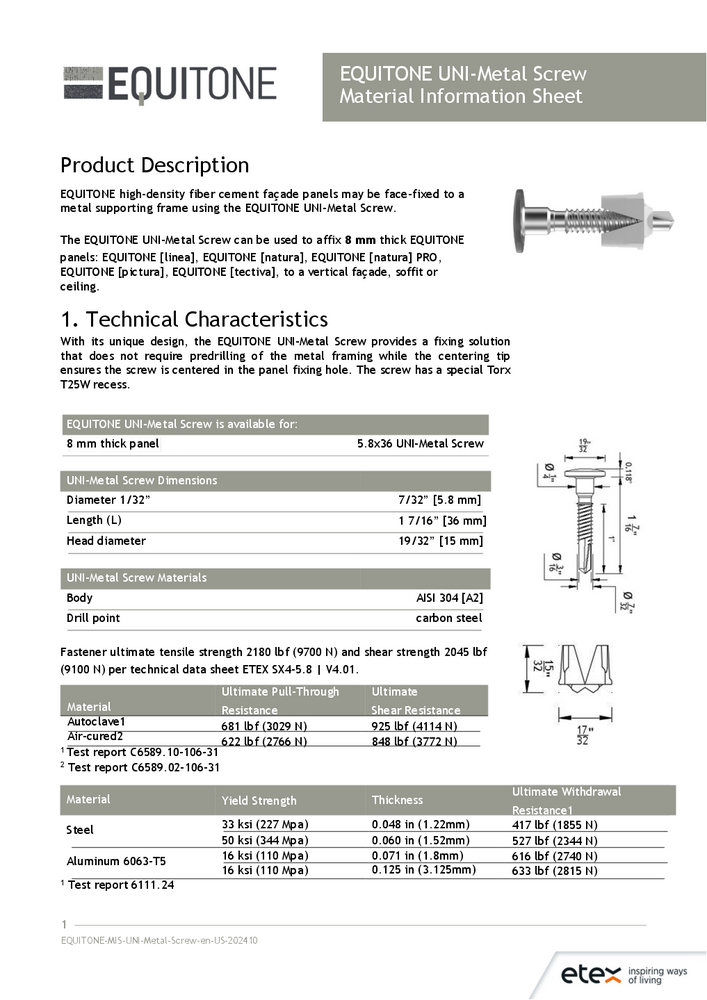

View Material Information Sheet

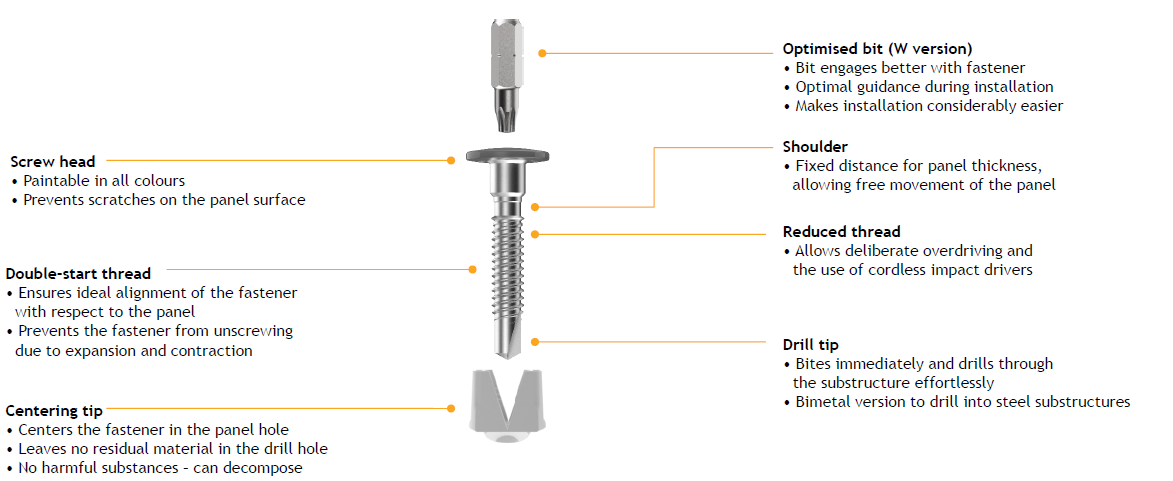

Key components of the UNI-Metal screw

Key components of the UNI-Metal screw

Centering Sleeve: Leaves no residual material in the drill hole to interfere with the 3-dimensonal movement after installation.
Drill Tip: Bites immediately and drills through the substructure with ease.
Shoulder: Protects the panel from overtightening.
Double-start Thread: Supports the straight alignment of the fastener to the panel.
Reduced Thread: Helps prevent the screw from accidentally backing out of the substructure.
Optimized Drive: Uses a T25W bit to help make installation more stable and therefore easier than standard Phillips.

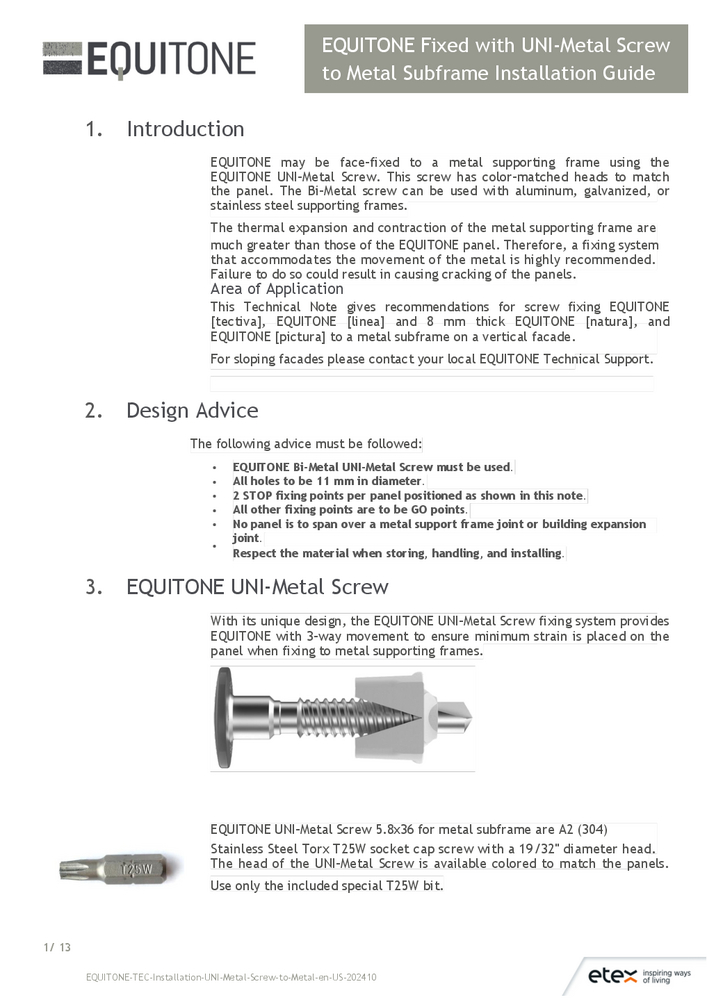

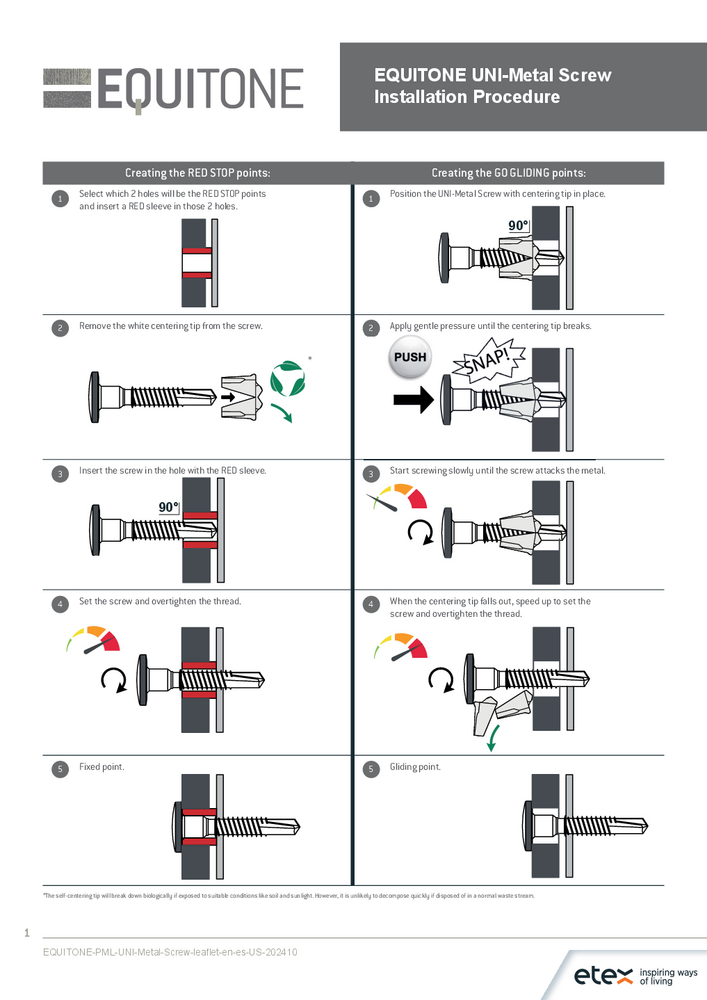

View Installation Guide

Consult with EQUITONE sales for questions relating to the UNI-Metal Screw.

Consult with EQUITONE sales for questions relating to the UNI-Metal Screw.

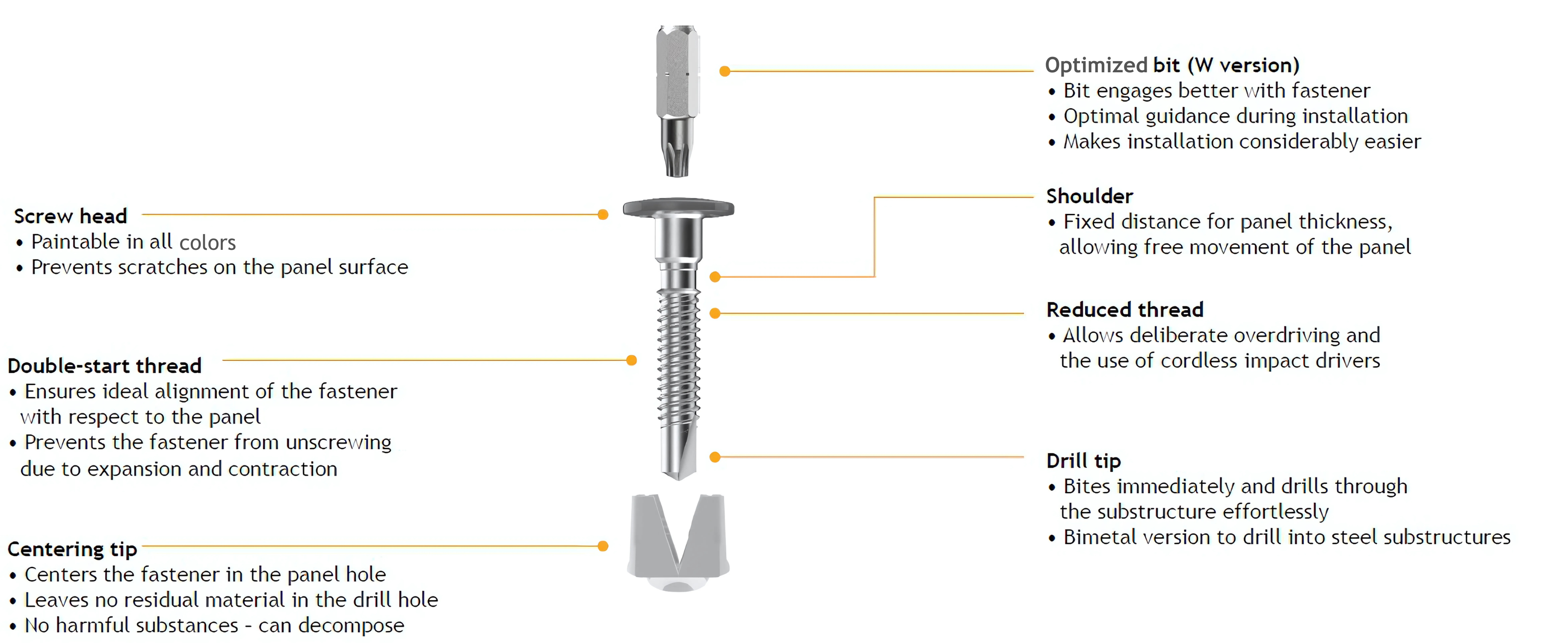

EQUITONE UNI-Metal crew Diagram

UNI-Screw for metal frames

Detailed information

Application:

Fastener for: Face-fixed installation of 8 mm EQUITONE fiber cement panel
Subframe: Steel or aluminum
Tools required: Standard drill or impact driver
Fixing type: Visible screw with color-matched head
Movement: Allows three-way movement (thermal expansion accommodation)
Compatibility: [natura], [tectiva], [linea], [pictura], [inspires]

Benefits:

stress-free fixing with integrated centering sleeve and depth stopper
clean, color-matched finish to match panel aesthetic
no torque settings required for installation
self-drilling tip for fast application into steel or aluminum
secure alignment and depth control for consistent installation
engineered thread resists loosening from thermal movement
durable material with high shear and tensile strength
biodegradable* centering sleeve supports sustainable design

*The self-centering tip will break down biologically if exposed to suitable conditions like soil and sunlight. However, it is unlikely to decompose quickly if disposed of in a normal waste stream.
