Don’t Settle for HPL: Choose a Façade Material That Performs

High-pressure laminate (HPL) and high-density fiber cement (HDFC) are both widely used in ventilated façade applications—but they differ significantly in material composition, fire performance, weatherability, and long-term durability. Understanding these distinctions is critical for making informed product specifications—especially in mid- to high-rise construction, where code compliance and performance can’t be compromised.

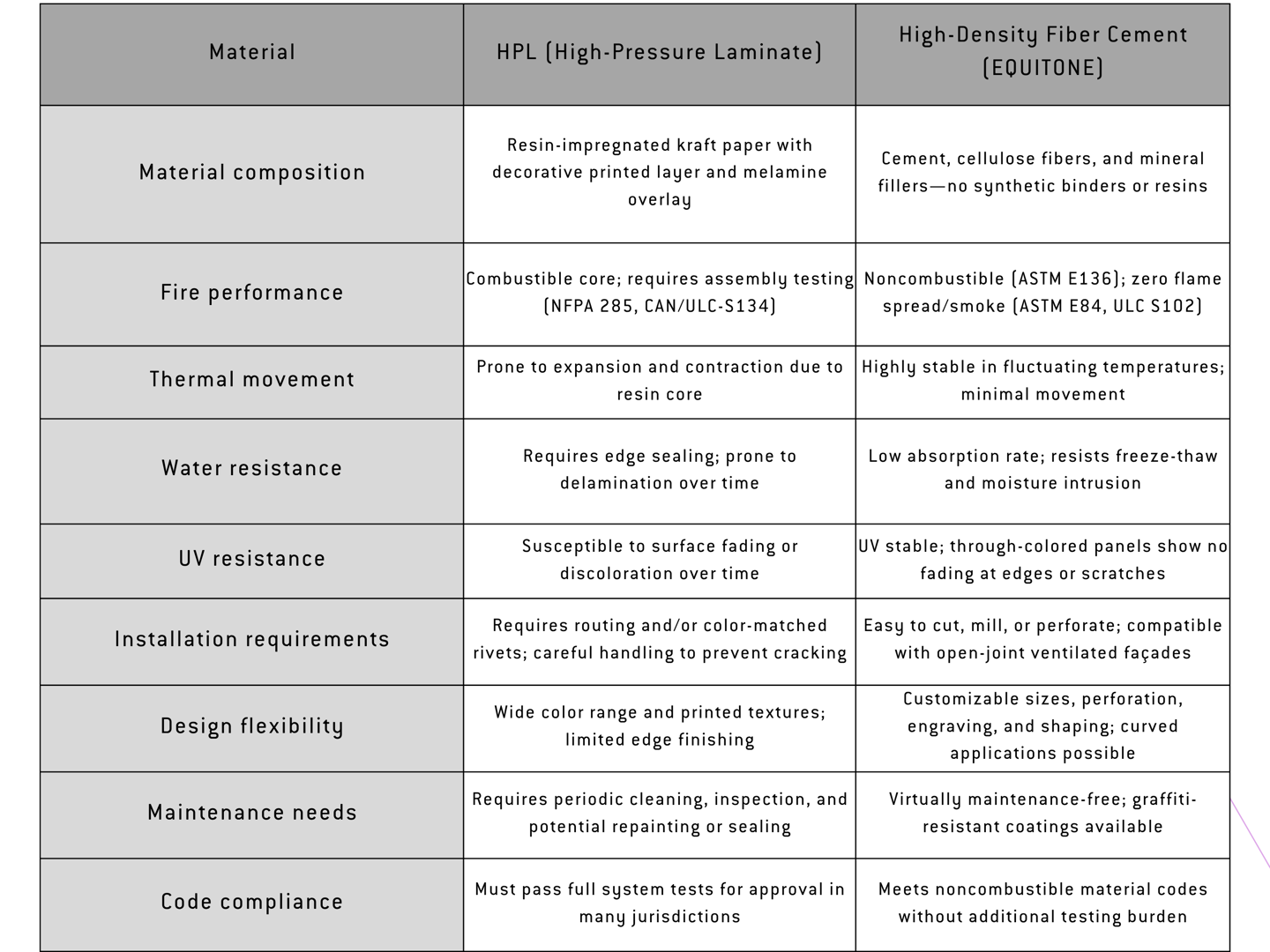

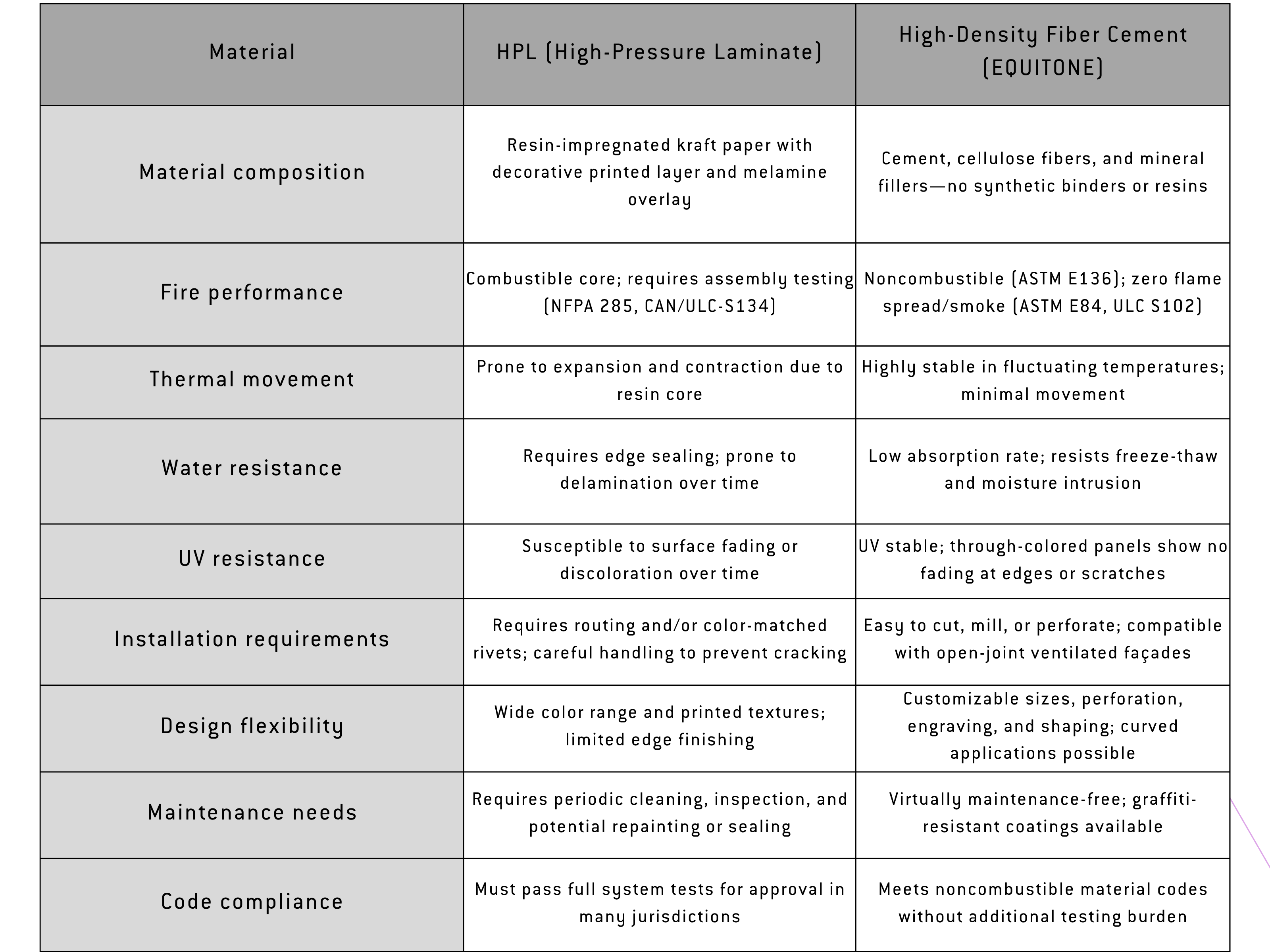

The following comparison breaks down how HPL and HDFC materials measure up across the most important performance criteria.

High-pressure laminate (HPL) is a dense, decorative cladding material manufactured by compressing layers of paper and resin under high heat and pressure. Commonly used in ventilated façade systems, HPL panels are favored for their bold colors, printed finishes, and impact-resistant surfaces.

The manufacturing process begins with multiple sheets of kraft paper impregnated with thermosetting phenolic resins. These core layers are topped with a decorative sheet—often a printed or pigmented paper—and finished with a clear melamine overlay for added surface protection. The stack is then pressed at high pressure and temperatures reaching 265°F or more, fusing the layers into a single, rigid panel.

Most exterior HPL panels range from 6mm to 13mm in thickness and are available in a wide variety of surface finishes, including smooth, matte, textured, or simulated woodgrain. The top melamine layer provides resistance to scratches and UV exposure, helping maintain the visual appearance over time. However, to prevent fading or edge degradation, proper sealing and maintenance are essential—especially in climates with high sun exposure or humidity.

While HPL panels are visually striking, they contain organic, resin-based materials that make them inherently combustible. As a result, their use in mid- and high-rise construction is subject to strict fire performance requirements. To be used legally and safely on taller buildings, HPL cladding must pass large-scale fire tests such as NFPA 285 in the United States or CAN/ULC-S134 in Canada. These certifications apply only to complete wall assemblies, not the material alone—meaning performance depends heavily on system configuration, subframing, insulation, and installation details.

Beyond combustibility, HPL can also present challenges in thermal movement and long-term durability. Its thermoset core is more prone to expansion and contraction with temperature changes than mineral-based alternatives. Over time, this can lead to edge cracking, panel warping, or water infiltration if not correctly detailed. While periodic maintenance and proper joint design can mitigate some of these risks, projects requiring enhanced fire performance and long-term resilience may benefit from exploring noncombustible alternatives like high-density fiber cement.

High-density fiber cement (HDFC) is a durable, mineral-based cladding material engineered for ventilated façade applications. Unlike HPL, which is made from resin-impregnated paper, high-density fiber cement is composed of cement, cellulose fibers, and mineral fillers—compressed under extreme pressure to form a dense, dimensionally stable panel. EQUITONE is one of the leading manufacturers of high-density fiber cement, offering a range of through-colored and coated options designed for modern architectural façades.

During manufacturing, raw materials are mixed, pressed, and cured to create high-strength panels with exceptional structural integrity. Some materials, like EQUITONE [natura], are through-colored, meaning the color extends throughout the entire board for a consistent, authentic look—even at the edges. Others, such as EQUITONE [pictura], feature a high-performance coating that delivers vibrant color and long-term surface protection.

High-density fiber cement is known for its low water absorption, UV resistance, and excellent impact strength. Its dense composition ensures minimal thermal movement and long-term dimensional stability, making it a reliable solution for rainscreens, soffits, sunshades, and other vertical and horizontal façade elements. Because it contains no resins or synthetic additives, HDFC also resists weathering and does not require repainting to maintain appearance or performance over time.
